食品級PTFE不鏽鋼編織軟管BW40

東莞市91香蕉小视频矽膠製品有限公司

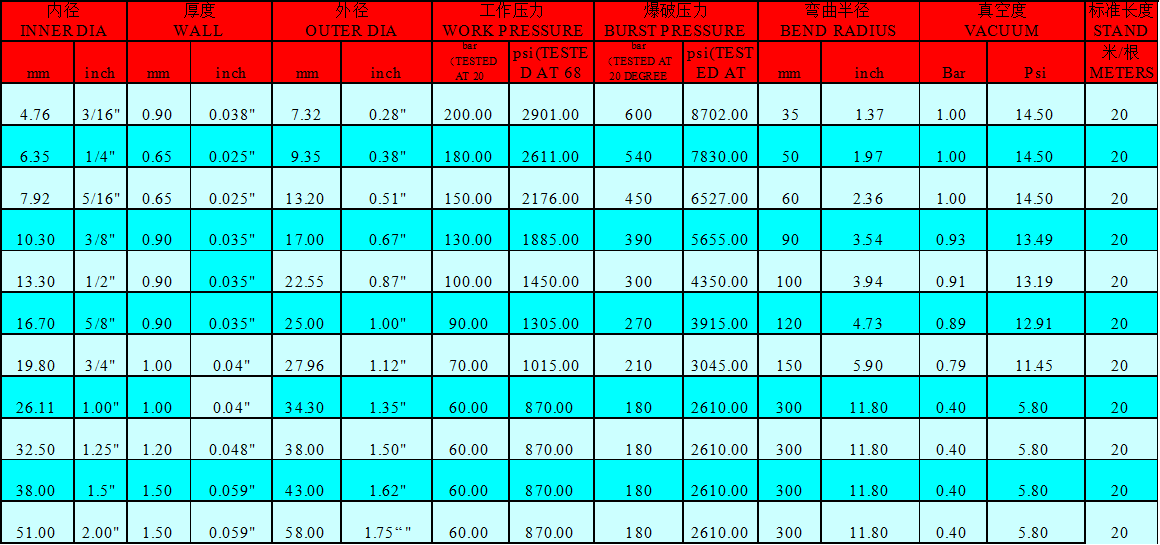

包覆波紋鐵氟龍（PTFE）軟管BW40係列技術參數

corrugated PTFE hose

產品結構：

內層：PTFE波紋狀，中間配有SS304不鏽鋼編織網，

中層：SS304不鏽鋼編織網

外徑：白色或透明矽膠

產品描述：

——工作溫度範圍‘-60ºC / +220ºC 在短時間內可達到 260ºC

——具有很好耐強酸和強堿性能，有極好的化學穩定性。可以耐高壓，內壁有具有很好耐磨性。

——具有很好彎曲性，內壁光滑清潔，易清洗不粘水，用清洗物清洗後不附著任何殘留物，可采用高溫高壓蒸汽消毒和滅菌。

——無嗅、無味,完全無毒，不含任何塑化劑和添加劑成分。完全符合食品FDA和生物醫用級USP VI的要求。

——這些管通常是外層為乳白色或透明矽膠。我們也可根據客戶所需顏色來訂製外層。

配套接頭：

TC接頭（直通快速接頭316L），SMS接頭，DIN快接，CLAMP，CLOCK，J螺紋接頭，等材質為304或316L任客戶挑選。

品質認證：

——矽膠軟管通過美國FDA 21 CFR 177.2600(食品和藥物管理局)食品級認證。

Product structure:

Inner layer: PTFE corrugated

Middle layer: SS304 stainless steel wire braided mesh

Outer Dia: white or transparent silicone

Product characteristics:

-The working temperature range of -60 to +220 degree Celsius and in a short period of time can reach 260 degrees Celsius.

-strong acid and alkali resistance is good, excellent chemical stability.Resistant to high pressure.The inner wall has a good wear resistance.

-With an excellent bend, the inner wall is smooth and clean, easy to be washed, no water sticking,

After cleaned by cleaning materials, no residue remained. The steam disinfection and sterilization can be done under high temperature and high pressure.

-Odorless, tasteless, non-toxic, does not contain any additives and plasticizer. Fully comply with the requirements of food FDA and biological medical grade USP.

-the outer layer of the hose is milky white silicone or transparent silicone. The color can be customized according to customer's needs

Supporting connectors:

TC connector (straight quick connector 316L), SMS connector, DIN quick connect, CLAMP, CLOCK, J threading connectors, etc,.The material is stainless steel 304 or 316L.

Quality certification:

-pass the United States FDA 21 CFR 177.2600 (food and Drug Administration) food grade certification.
