鉑金矽膠軟管FP40

鉑金矽膠軟管FP40

Platinum silicone hose FP40

注：1.測試條件為：常溫常壓狀態下測試（室溫為20度），經過嚴格測試溫度每升高100度，壓力會降低15%，

2.標準長度為6米,如有特殊要求可以定做10米.可以來電谘詢訂購.

產品應用：

膠管光滑的內外壁,有利於軟管的清洗和消毒滅菌（jun1），這種隻適用於普通壓力的傳輸，可以用於牛奶，飲料以及純淨水類輸送，

不建議用於抽吸液體和抽吸泵類物質。

產品描述：

鉑金硫化矽膠軟管FP40係列采用鉑金硫化矽膠和四層加強聚脂布結構，

標準長度為6米，最長為10米。同時我們也可以根據客戶的要求生產規定的尺寸和長度，膠管產品通過美國FDA級和USP Class VI和德國BFR認證。

產品特性：

FP40係列矽膠軟管

——工作溫度範圍‘-60ºC / +180ºC (-76ºF / +356ºF)在短時間內可達到  220ºC (392ºF)

——內壁光滑清潔，易清洗不粘水，用清洗物清洗後不附著任何殘留物，可采用高溫高壓蒸汽消毒和滅菌。

——無嗅、無味,完全無毒，不含任何塑化劑和添加劑成分。完全符合食品FDA和生物醫用級USP的要求。

——這些管通常是乳白色。我們也可根據客戶所需顏色來訂製。

品質認證：

——可達到FDA，BfR，USP，ISO10993，NSF51，食品級醫用級的要求。

Note:

1 test conditions: tested under constant temperature and atmospheric pressure state (room temperature is 20 degrees)

2 after a strict test,when the temperature is going up by every 100 degrees Celsius, the pressure will be reduced by 15%,

Product application:

The hose has very smooth wall inside and outside, which is good for cleaning and steriliztion. It is only applicable to ordinary pressure transmission,

and can be used for deliverying milk, beverages, as well as purified water with no recommendation for liquid suction and suction pump.

Product description:

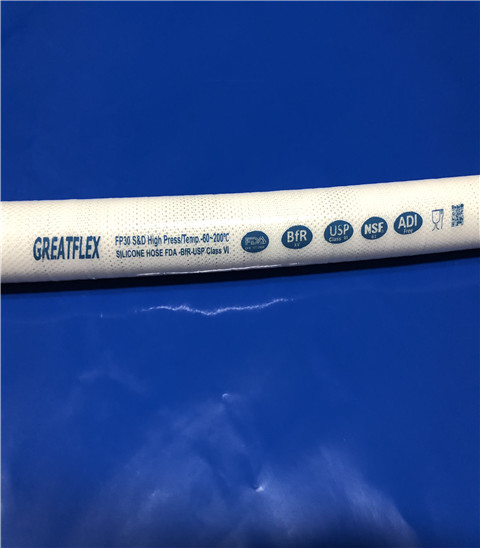

-The hose is made by the platinum vulcanized silicone and 4 layers reinforced polyester fabric structure.

-Standard length is 6 meters or speially 10 meters. At the same time, we can customize the hose length according to customers' needs. Our hose products has passed the United States FDA grade and Class VI USP and German BFR certification.

Product characteristics:

-The working temperature range of -60 to +180 degree Celsius (-76 to +356 degrees Fahrenheit) and can reach 220 degrees Celsius (392 degrees Fahrenheit) in a short period of time.

-the inner wall is smooth and clean, easy to be washed, no water sticking,

After cleaned by cleaning materials, no residue remained. The steam disinfection and sterilization can be done under high temperature and high pressure.

-Odorless, tasteless, non-toxic, does not contain any additives and plasticizer. Fully comply with the requirements of food FDA and biological medical grade VI USP.

-these hoses are usually milky white color. The color of hose can be can customized according to customer's needs.

Quality certification:

-meet the requirements of FDA, BFR, USP, ISO10993, NSF51 and medical grade.
