工業用矽膠軟管SP40

汽車矽膠軟管SP40

Auto silicone hose SP40

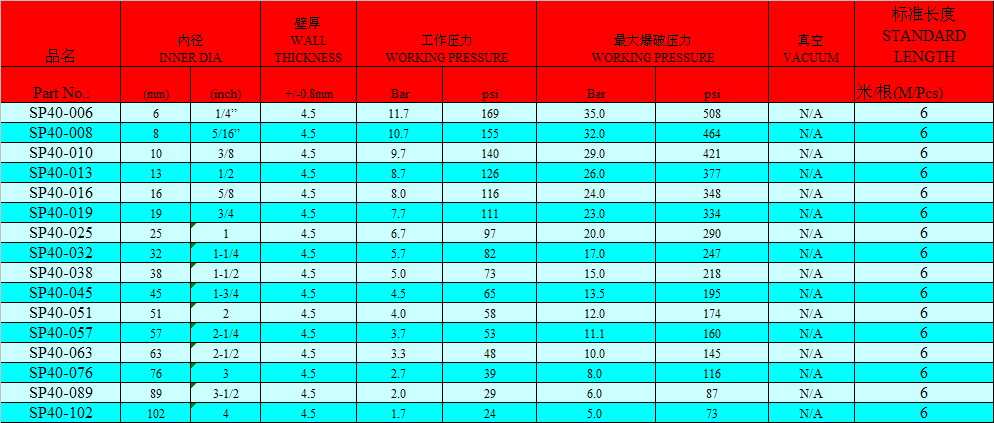

注：1.測試條件為：常溫常壓狀態下測試（室溫為20度），經過嚴格測試溫度每升高100度，壓力會降低15%，

2.標準長度為6米,如有特殊要求可以定做10米.可以來電谘詢訂購.

REMARKS:

1,Test conditions: tested under normal temperature and pressure state(room temperature is 20 degrees Celsius),

When the pressure is constant, the temperature rise by 100 degrees, the pressure will drop by 15%.

2, Standard length is 6 meters or especially 10 meters and we can customize the hose length according to customers' needs.

產品應用：

本產品推薦應用於在高溫高壓時，可以過熱空氣和熱水，具有良好的耐溫性和耐腐性。

主要應用於公共汽車，拖車和一些特殊工況下，同時可以應用於汽車發動機。可做為汽車，貨櫃車，公共汽車發動機的冷卻水管

產品特點：

-具有很好的壓縮

-組裝過程中具有良好的彎曲性和柔軟性能。

-內外表麵光滑，可以做藍色，紅色和黑色，同時還可以是可以根據客戶的要求來定做顏色和不同規格的長度。

-具有良好的耐溫性能，工作溫度為-60 ºC (-75 F) to +180ºC (356 F），短時間的工作溫度可以達到 200ºC (392 F)

一般長度為100*100,150*150,200*200MM,如有特殊要求可以根據客戶的要求來定做.

--耐臭氧性,抗UV性能和耐老化性能.

符合標準：

1.產品符合SAE J20R1 Class A的標準

2.矽膠軟管符合歐洲EU 2002/95/ECC 環保RoHS認證標準。

Product application:

This product is especially recommended for hot air and hot water going through under high temperatures and high pressures with good temperature and corrosion resistance. At high temperatures, it can be used in vehicles and in the industrial sector.

It can be used in cooling and heating systems in buses, coaches, lorries and industrial vehicles, cooling systems in the cogeneration units and marine engines, and transport of high temperature fluids in general industry.

It is recommended for connections in areas with limited space.

Product features:

- with excellent compressibility

- good bendability and flexibility during assembly.

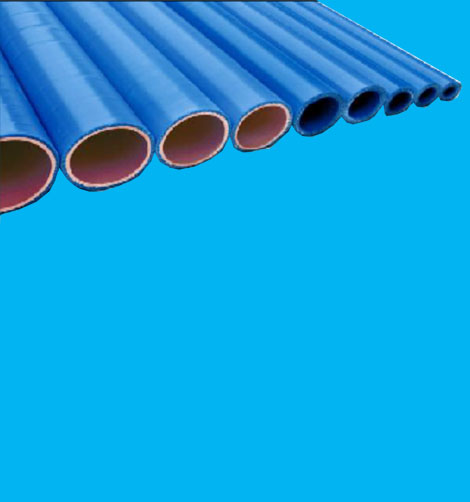

-outer and inner hose surface is smooth with choices of blue color, red color and black color.At the same time, the color and length of this elbow can be custom made according to the customer's needs.

-with good temperature resistance,working temperature from 60 degrees C (- 75 F) to + 180 degrees C (+356 F).In short time, the temperature can reach 200 degrees C (+392 F).

-normal length is 100*100mm, 150*150mm, 200*200mm. And, the length can be customized according to customer's needs.

-Oxidation resistance, anti UV performance and aging resistance.

Regulations:

−comply with the J20R1 Class A SAE standard

-comply with the European 2002/95/ECC RoHS environmental EU certification standards
